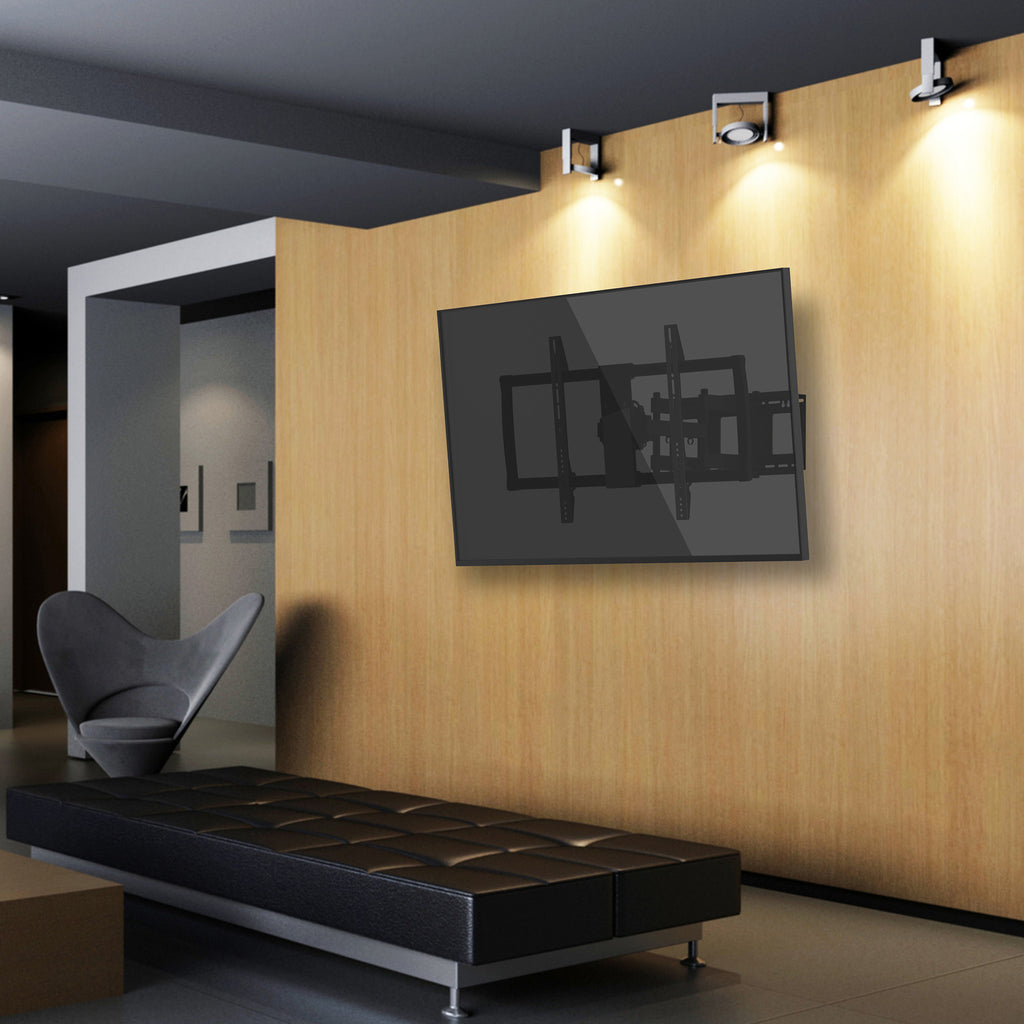

TV Wall Mount | Large and Extra-Large TVs

For 60"-100" Curved & Flat Panel TVs

Seamless full motion adjustments allows you to get the ideal viewing angle for you TV - tilts 15 degrees, swivels 45 degrees, extends up to 24.5 inches, and retracts to 2.75 inches

Supports the following VESA patterns:

200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 800 x 400 mm, 800 x 600 mm, and 800 x 800 mm

Included cable clips allow you to route unsightly cables through the mount to keep a clean and organized TV and entertainment area

Specs

Included Hardware

• Heavy duty wall mount
• (2) TV mounting brackets
• (4) Cable clips and cable clip screws
• Allen wrench
• Drilling template
• (4) Wall mounting screws
• (4) Concrete wall anchors
• (2) Wall mounting washers
• (4) M5 screws
• (4) M6 short screws
• (4) M6 long screws
• (4) M8 screws
• (4) Metal spacers
• (8) Small spacers
• (8) Large spacers

Tools Needed for Installation

• Phillips head screwdriver
• Power drill
• Level
• Marking pencil
• Stud locator for stud wall mounting
• Masking tape
• A friend to help lift the TV

Manual

101-4001 Manual

Item Weight

39.7 pound
